Papiertüummaschine mit verdrehtem Griff

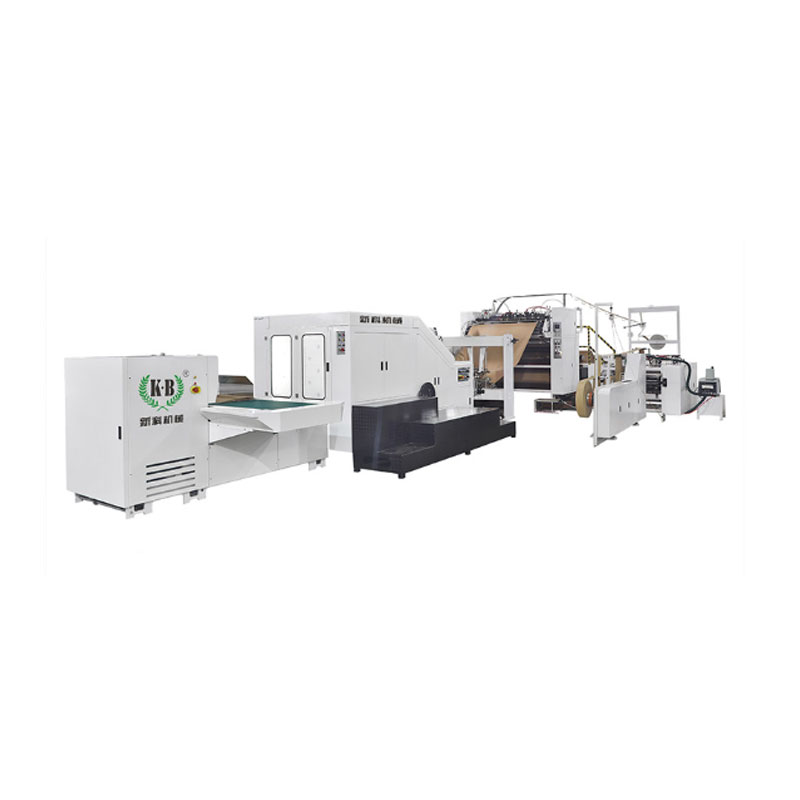

Paper bag machine with twisted handle is used for the production of a paper bag with a twisted handle loop. Transmission of the handle made by handle making unit, cut, stick, pressed, and then pre-cut, glue, auto handle stick in empty or printed roll paper. Then the main machine will glue the paper with the handle loop to the edge, paper bag tube forming, cut off, indentation, bottom glue, bottom forming, and sealing, bag conveying. the whole process is completed simultaneously at one time. Real realization of full automation production, can effectively save labor costs.

Specification

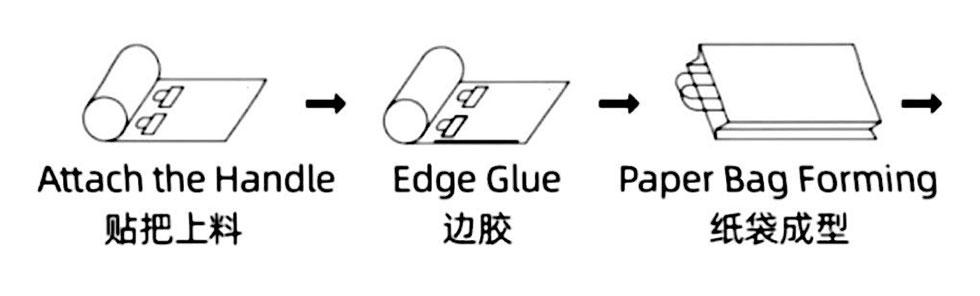

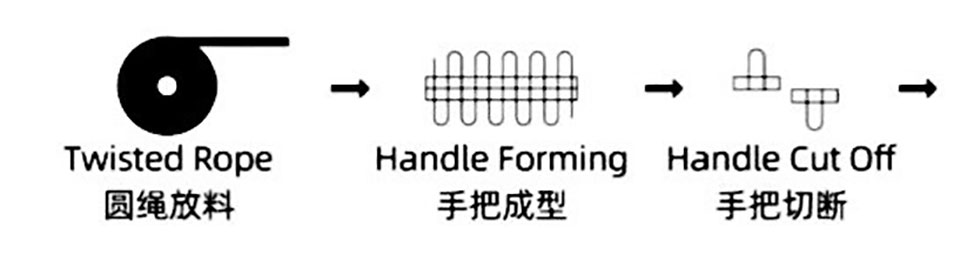

Schematic diagram

Main features

Paper bag machine with twisted handle is suitable for:
Food bag:leisure food bag,baking bag,nuts fried bag,subsidiary food bag,fruit bag,baby products bag,etc.
Gift bag:candy ,tea wine etc.
Take away bag:shopping bag,cloth bag,taking away food bag

1. Use France SCHNElDER touch screen human-computer interface, making themachine easy to operate and control.
2. Adopt France original SCHNEIDER PC control, integrated with optical fiber.Thus ensure stable and high speed running.
3. Adopt France original SCHNElDER servo motor and German original SlCKphotoelectric eye correction, tracking printing bag accurately.
4. Raw material loading adopts hydraulic auto-lifting structure. Unwind unitadopts auto tension control.
5. Raw material unwinding EPC adopts ltaly SELECTRA, reducing materialalignment time.

Detailed image

The Paper bag machine with twisted handle adopts the servo-electric control system imported from Japan, which ensures the whole machine can run quickly and stably and effectively reduces the time of paper bag size adjustment. The finished bags produced are of high accuracy, strong stability, simple maintenance, and efficient production, which is the ideal equipment for major printing plants and paper bag manufacturers.

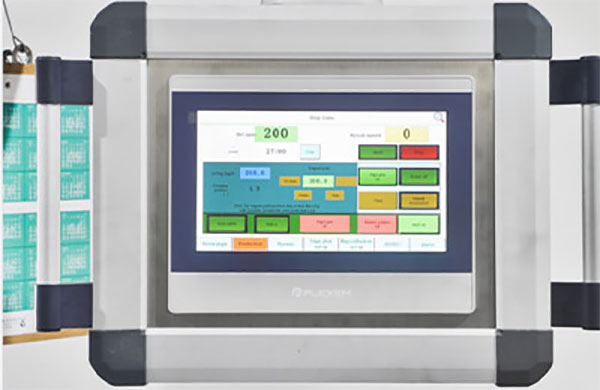

Touch Screen Human-Computer Interface, operate and control easily.

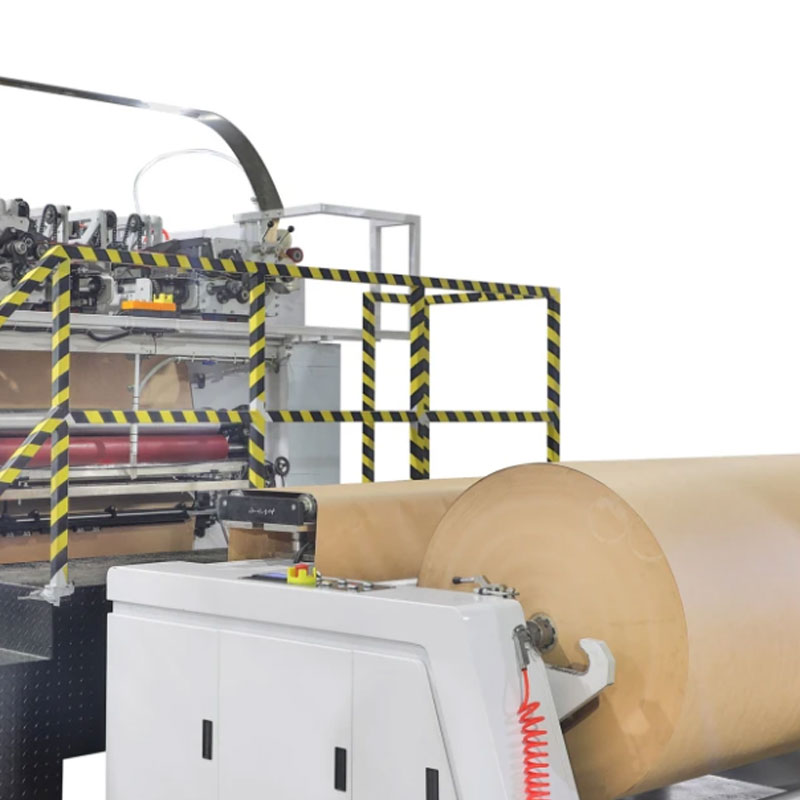

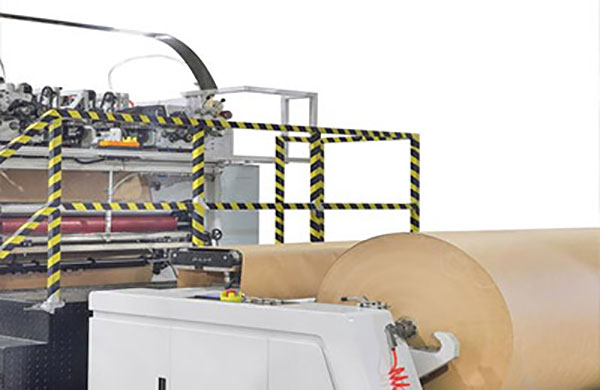

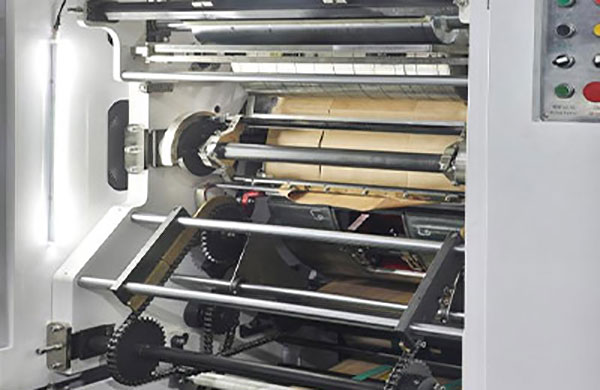

Raw material loading and unloading adopts motor and hydraulic lifting structure , and unwinding adopts automatic constant tension control.

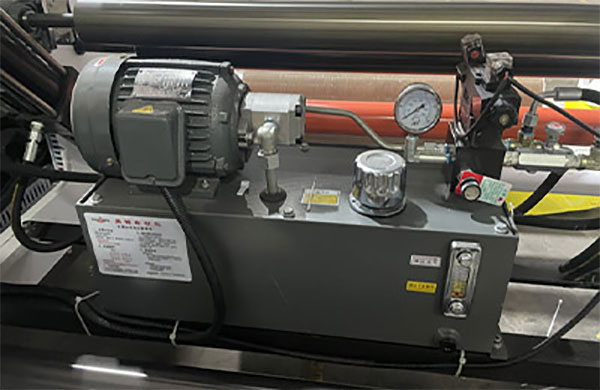

Hydraulic unwinding system,through the hydraulic feeding method,covenient air exchange shaft,automatic fast feeding.

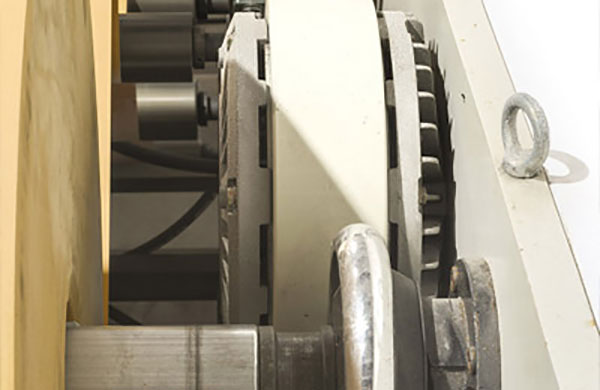

The paper tension adopts magnetic powder brake,make the paper feeding more stable.

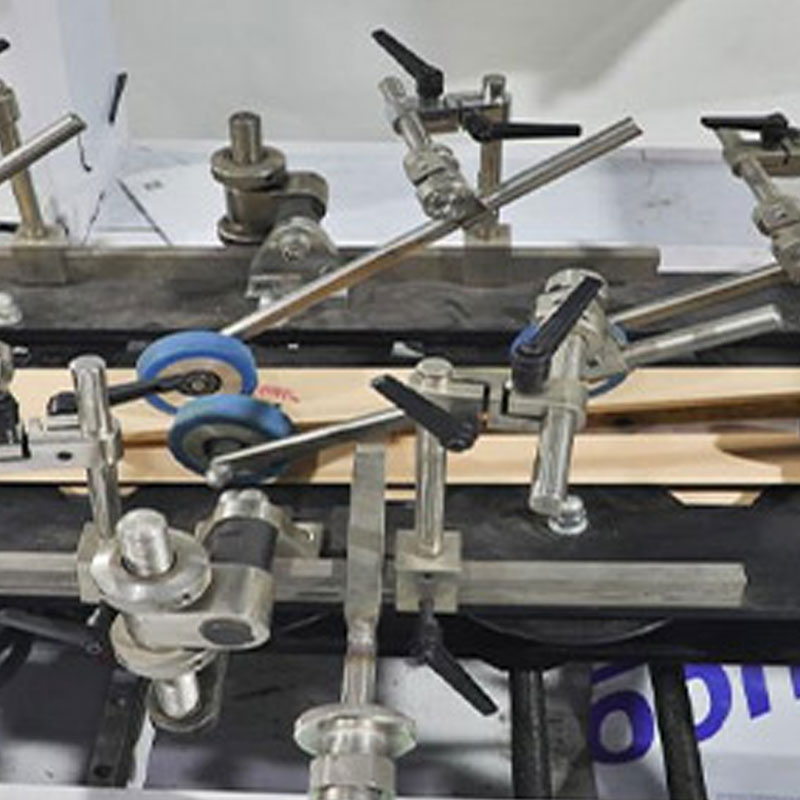

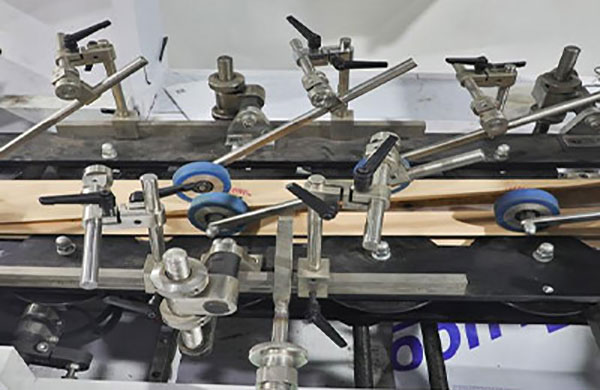

The paper tube forming adopts an integrated tube forming adjustment structure by wheel more simple,convenient,fast and sable.

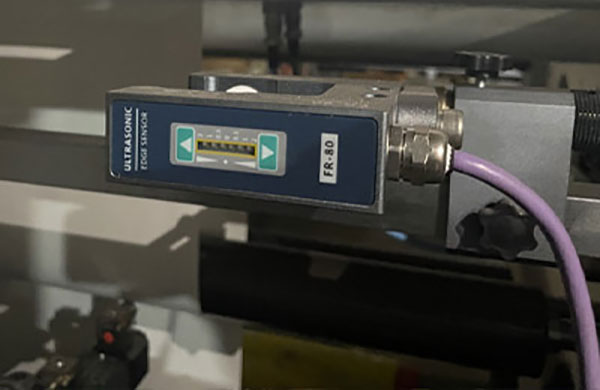

Raw material correction can reduce the paper roll alignment adjustment time automatic constant tension control.

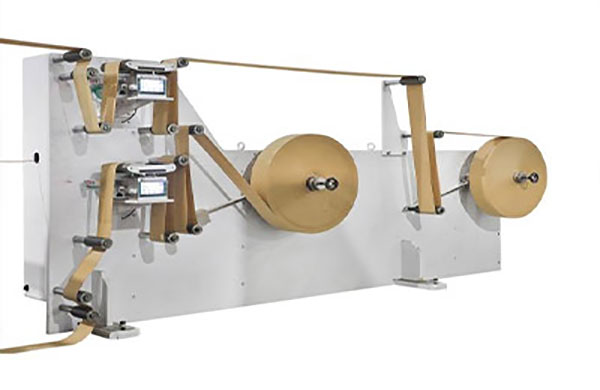

The machine adopts advanced automatic control technology to automatically make paper material into paper bag handle, and transmits it to the paper bag machine handle through the transmission belt.

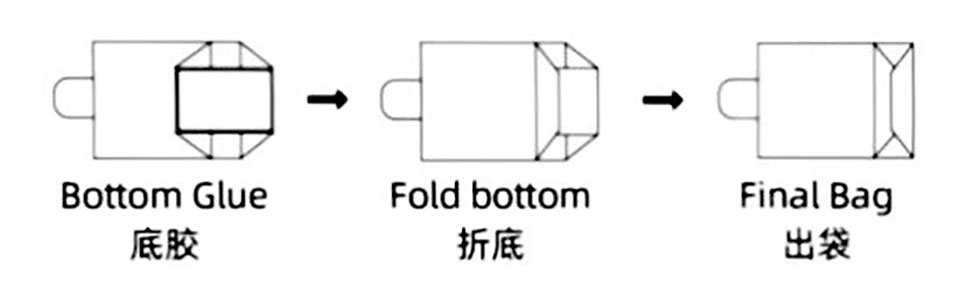

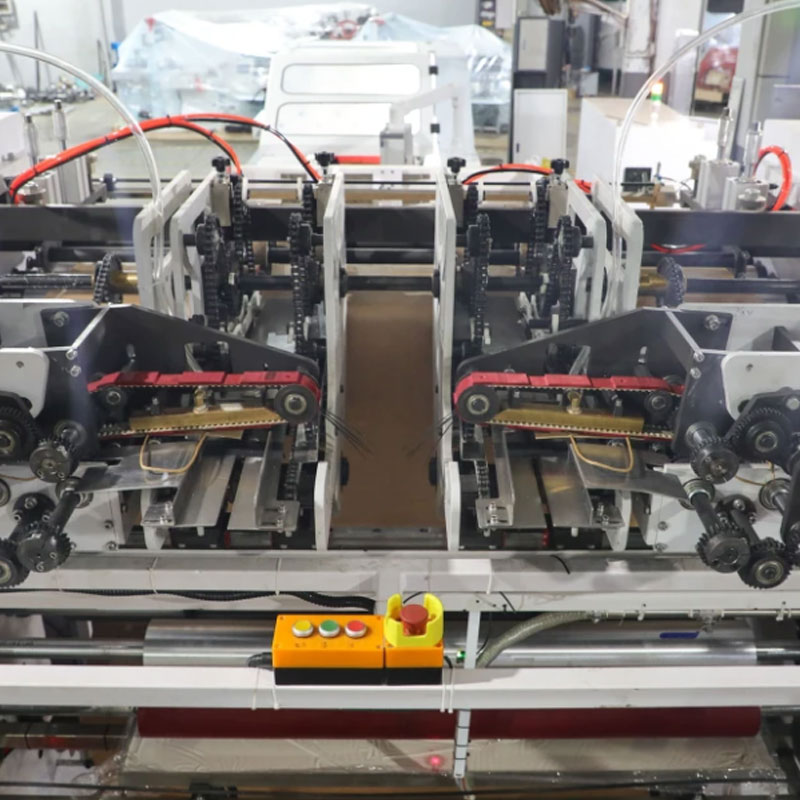

The machine automatically applies glue to the bottom of the paper bag, closes the bottom and folds the bottom to ensure the unified standard of the paper bag bottom.

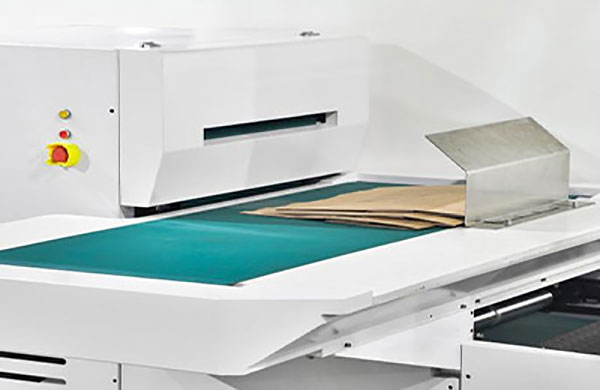

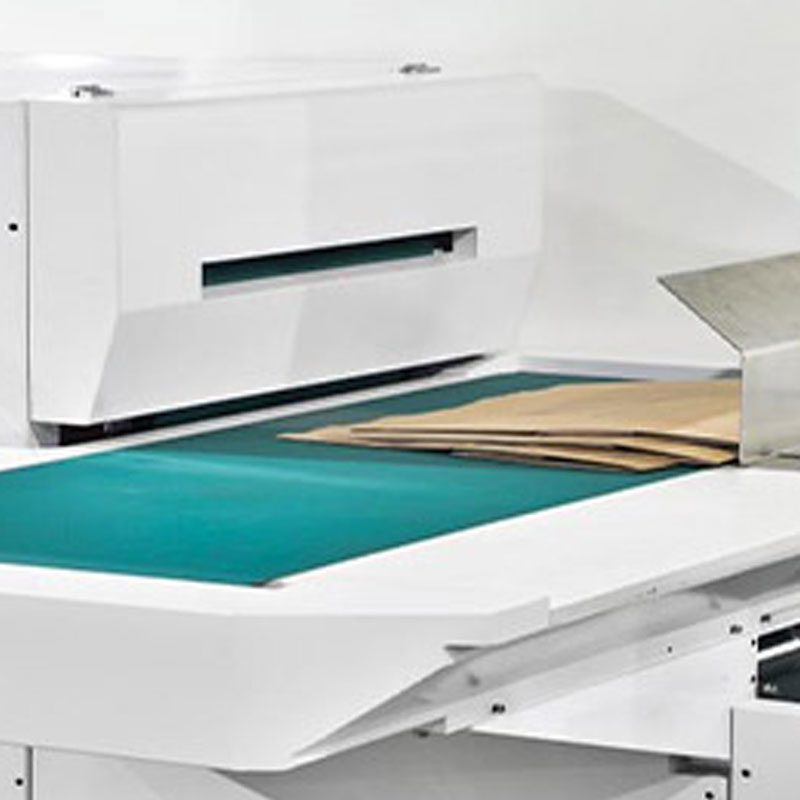

Paper bag machine finished bag part, the machine will automatically count the number of finished paper bags, easy to organize.
